Preprocessing Data

The synomicsbench.processing module provides a comprehensive suite of utilities for cleaning, transforming, and integrating omics and clinical data. This processing pipeline minimizes the confounding impact of data quality on generative model effectiveness, ensuring unbiased comparability among the evaluated synthetic data generation methods. As illustrated in Figure 2, the pipeline follows five sequential steps: 1) Data Filtering, 2) Transcriptomic Harmonization, 3) Feature type classification, 4) Multivariate missing data imputation, and 5) Data Integration. The pipeline is flexible and configurable, allowing users to customize preprocessing steps based on their specific datasets and analysis requirements.

Data Integration Pipeline

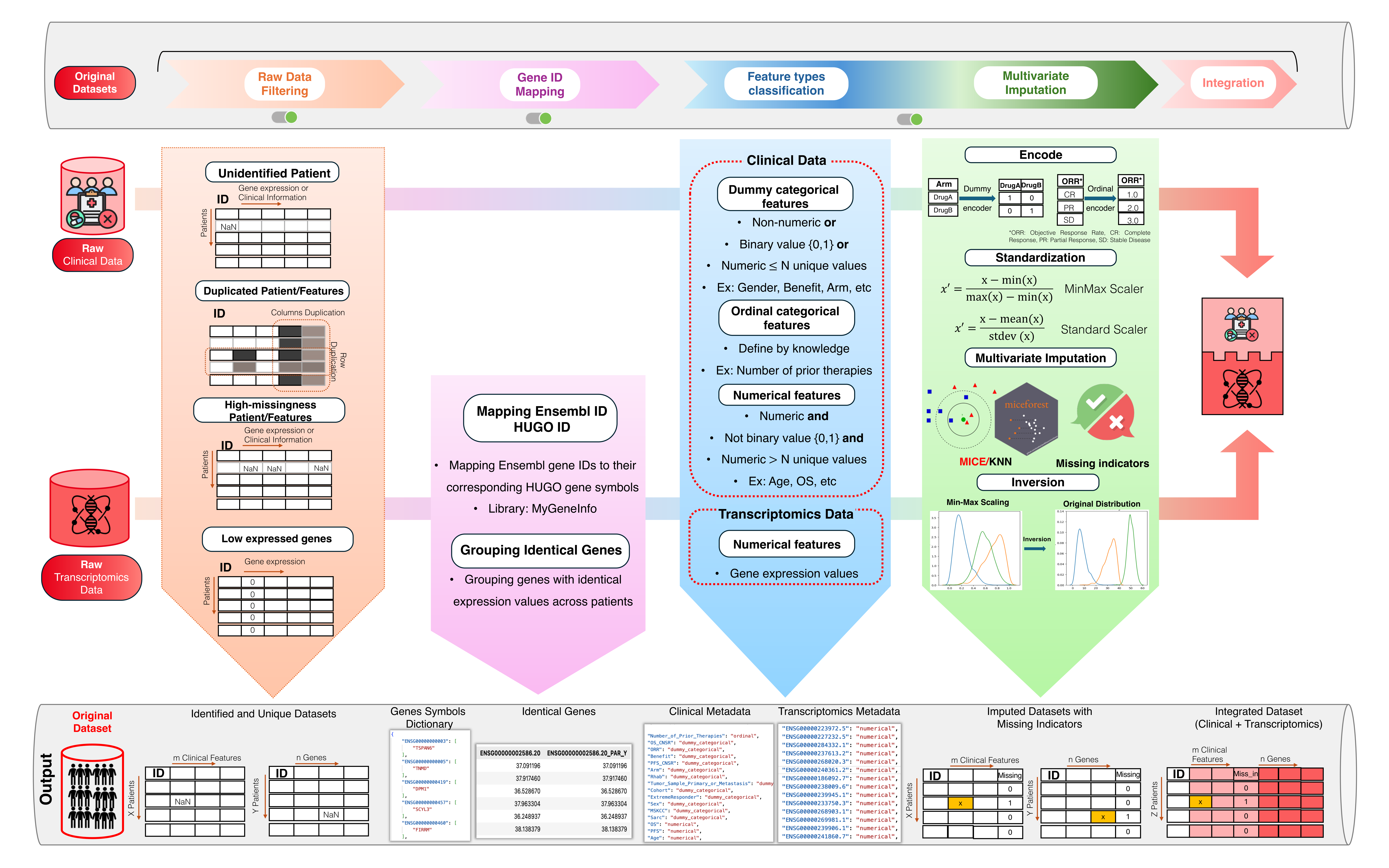

Figure 1: Standardized preprocessing pipeline for clinical-transcriptomic data integration.

The DataIntegrationPipeline ensures data quality and consistency before synthetic data generation or downstream analysis.

Pipeline Execution

The following example demonstrates how to configure and execute the complete data integration pipeline:

import pandas as pd
from synomicsbench.processing.pipeline import DataIntegrationPipeline

# Load your raw data
clinical_data = pd.read_csv("clinical_data.csv")
transcriptomics_data = pd.read_csv("transcriptomics_data.csv")

output_dir = "./integrationpipeline_output"

ordinal_cat_columns = [
    "MSKCC",
    "Number_of_Prior_Therapies",
    "ORR",
    "ExtremeResponder",
    "Benefit",
]

steps_config = {
    "remove_undefined": True,
    "remove_duplicates": True,
    "remove_overmissing_samples": True,
    "remove_low_expression_genes": True,
    "check_duplicate_genes": True,
    "mapping_genes": True,
    "feature_engineering": True,
    "integrate_data": True,
}

imputer_params = {
    "iterations": 10,
    "n_estimators": 100,
    "random_state": 42,
}

pipeline = DataIntegrationPipeline(
    output_dir=output_dir,
    logger="Integration_final",
)

results = pipeline.run_pipeline(
    clinical_data=clinical_data,
    transcriptomics_data=transcriptomics_data,
    clinical_id_column="RNA_ID",
    transcriptomics_id_column="Sample",
    integration_id_column="Patient_ID",
    steps_config=steps_config,
    overmissing_samples_threshold=50,
    overmissing_features_threshold=50,
    unique_threshold=10,
    scaler="minmax",
    ordinal_cat_columns=ordinal_cat_columns,
    imputer="mice",
    imputer_params=imputer_params,
    low_expression_variance_threshold=0.0005,
    add_indicators=True,
    verbose=True,
)

# Access outputs — run_pipeline() returns a dict with three keys
processed_clinical       = results["processed_clinical"]
processed_transcriptomics = results["processed_transcriptomics"]
integrated_data          = results["integrated_data"]   # None if integrate_data=False

print(f"Clinical shape:        {processed_clinical.shape}")
print(f"Transcriptomics shape: {processed_transcriptomics.shape}")
print(f"Integrated shape:      {integrated_data.shape}")

The steps_config dictionary controls which preprocessing steps are executed, allowing flexible pipeline customization based on data characteristics and analysis requirements. The pipeline returns a dict with keys processed_clinical, processed_transcriptomics, and integrated_data (the inner-joined dataset, or None when integrate_data=False).

Pipeline Steps

The data integration pipeline executes configurable steps in sequence, controlled by steps_config.

remove_undefined → remove_duplicates → remove_overmissing_samples →
(transcriptomics only) remove_low_expression_genes → check_duplicate_genes → mapping_genes →
feature_engineering → integrate_data

Step key	What it does	Where it runs	Implementation (code)	Key params
remove_undefined	Drop rows with missing IDs	Clinical + transcriptomics	DataProcessor.remove_unknown_entities(...)	*_id_column
remove_duplicates	Remove exact duplicate rows/cols	Clinical + transcriptomics	DataProcessor.remove_duplications(..., axis=0/1)	axis
remove_overmissing_samples	Drop rows with missingness > threshold	Clinical + transcriptomics	DataProcessor.remove_overmissing_entities(...)	overmissing_samples_threshold
remove_low_expression_genes	Filter zero-sum / near-zero variance genes	Transcriptomics	DataProcessor.remove_low_expression_genes(...)	low_expression_variance_threshold
check_duplicate_genes	Find identical expression profiles	Transcriptomics	GeneQuery.check_duplicates(...)	(none)
mapping_genes	Map Ensembl IDs → HUGO symbols	Transcriptomics	GeneQuery.mapping_genes(...)	(none)
feature_engineering	Type classification + encoding + scaling + imputation	Clinical + transcriptomics	DataProcessor.feature_engineering(...)	data_type, imputer, imputer_params, scaler, unique_threshold, ordinal_cat_columns
integrate_data	Merge clinical + transcriptomics on common ID	Final integration	DataIntegrationPipeline.integrate_data(...)	integration_id_column

Tip

If you only need one step (e.g., just filtering, encoding, or imputation), you can call the preprocessing utilities directly—see the section below.

Utility Functions (DataProcessor)

All helper functions are available in synomicsbench.processing.preprocessing.DataProcessor. These are useful when you want to execute specific preprocessing steps without running the full DataIntegrationPipeline.

Available Methods

Method	Description	Key Parameters
remove_duplications	Drops duplicate rows or columns	axis=0/1
remove_unknown_entities	Removes rows with missing IDs	id_column
remove_overmissing_entities	Drops rows with missingness above threshold	threshold
find_missing_percent	Calculates missingness percentage
remove_overmissing_features	Drops columns with missingness above threshold	threshold
remove_low_expression_genes	Filters near-zero variance genes	gene_id_column, variance_threshold
encode_dummy_features	One-hot encodes categorical data
encode_ordinal_features	Ordinal encodes categorical data
standardization	Scales numerical features	scaler='minmax'/'standard'
mice_imputation	Multiple Imputation by Chained Equations	iterations, n_estimators, add_indicators
extract_missingindicator_columns	Extracts generated missingness indicators
inverse_dummy_features	Reverses dummy encoding	dummy_cat_columns
inverse_ordinal_features	Reverses ordinal encoding	encoder
inverse_standardization	Reverses scaling	scaler
knn_imputation	k-Nearest Neighbors imputation	n_neighbors, dummy_cat_columns, ordinal_cat_columns
feature_engineering	Type classification, encoding, scaling, and imputation pipeline	data_type, imputer, imputer_params, scaler

Example Usage

The following example uses a realistic clinical-transcriptomic dataset (30 patients, 6 clinical features, 30 genes) to demonstrate each DataProcessor step individually.

import pandas as pd
import numpy as np
from synomicsbench.processing.preprocessing import DataProcessor

# ── Sample data ──────────────────────────────────────────────────────────────
N = 30
np.random.seed(42)

data = {
    "Patient_ID":       [f"P{i+1:02d}" for i in range(N)],
    "Gender":           np.random.choice(["M", "F"], N),
    "Mstage":           np.random.choice(["I", "II", "III", "IV"], N),
    "Tx_Start_ECOG":    np.random.choice([0, 1, 2], N).astype(float),
    "numPriorTherapies":np.random.randint(0, 4, N).astype(float),
    "biopsyContext":    np.random.choice(["Primary", "Metastatic"], N),
    "Age":              np.random.randint(45, 80, N).astype(float),
}
for i in range(1, 31):
    data[f"Gene_{i:02d}"] = np.random.normal(loc=5, scale=2, size=N)

df = pd.DataFrame(data)

# Introduce realistic missingness
df.loc[[10, 12], "Patient_ID"] = np.nan   # undefined IDs → will be dropped
df.loc[2,  "Age"]           = np.nan
df.loc[5,  "Mstage"]        = np.nan
df.loc[15, "Tx_Start_ECOG"] = np.nan

# ── 1. Filtering & QC ────────────────────────────────────────────────────────
df_clean = DataProcessor.remove_unknown_entities(df, id_column="Patient_ID")
df_clean = DataProcessor.remove_duplications(df_clean, axis=0).reset_index(drop=True)

# ── 2. Encoding ──────────────────────────────────────────────────────────────
dummy_cat    = ["Gender"]
ordinal_cols = ["Mstage", "Tx_Start_ECOG", "numPriorTherapies", "biopsyContext"]

cat_encoded              = DataProcessor.encode_dummy_features(df_clean[dummy_cat])
ord_encoded, ord_encoder = DataProcessor.encode_ordinal_features(df_clean[ordinal_cols])

# ── 3. Scaling ───────────────────────────────────────────────────────────────
num_scaled, num_scaler = DataProcessor.standardization(df_clean[["Age"]], scaler="minmax")

# ── 4. MICE imputation ───────────────────────────────────────────────────────
# Operates on the cleaned DataFrame; missing indicators are appended automatically.
df_imputed = DataProcessor.mice_imputation(
    df_clean.reset_index(drop=True),
    iterations=10,
    n_estimators=100,
    add_indicators=True,
)

# ── 5. Extract missingness indicators ────────────────────────────────────────
indicators = DataProcessor.extract_missingindicator_columns(df_imputed)
print(indicators.columns.tolist())
# ['missingindicator_Age', 'missingindicator_Mstage', 'missingindicator_Tx_Start_ECOG']
